Hoofdstuk 5 RGB-LED

In dit hoofdstuk leren we hoe u een RGB-LED kunt besturen.
Een RGB-LED heeft 3 LED’s geïntegreerd in één LED-component. Het kan respectievelijk rood, groen en blauw uitstralen licht.
Om dit te doen, heeft het 4 pinnen nodig (zo identificeer je het ook).
De lange pin (1) is de gemeenschappelijk dat is de anode (+) of positieve draad, de andere 3 zijn de kathodes (-) of negatieve draden.

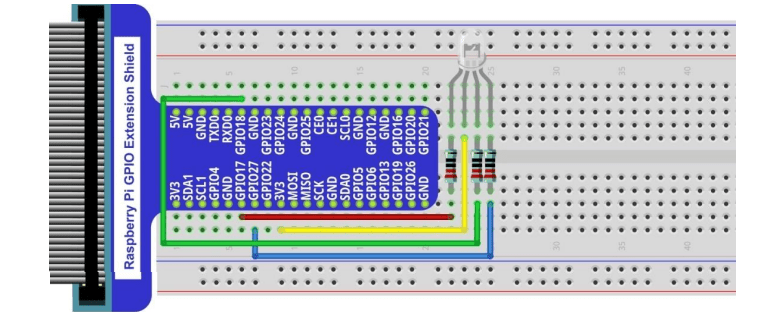

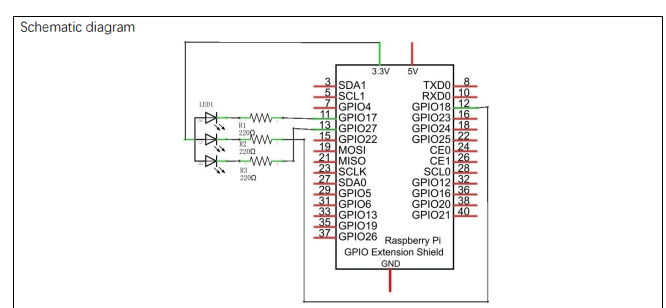

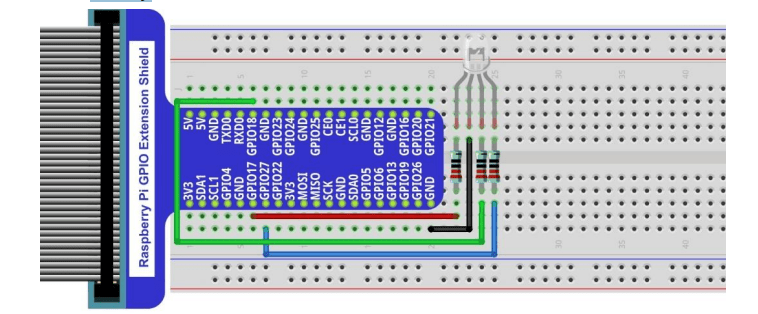

Een weergave van een RGB-LED en het elektronische symbool ervan worden hieronder weergegeven.
Wij kunnen RGB-LED’s verschillende kleuren licht laten uitstralen en helderheid door het regelen van de 3 kathoden (2, 3 en 4) van de RGB-LE

Code Pyton

#!/usr/bin/env python3
########################################################################
# Filename    : ColorfulLED.py
# Description : Random color change ColorfulLED
# Author      : www.freenove.com
# modification: 2023/05/11
########################################################################
from gpiozero import RGBLED
import time
import random

#led = RGBLED(red="J8:11", green="J8:12", blue="J8:13", active_high=False) # define the pins for R:11,G:12,B:13
led = RGBLED(red=17, green=18, blue=27, active_high=False) # define the pins for R:GPIO17,G:GPIO18,B:GPIO27
# If your RGBLED is a common cathode LED, set active_high to True

def setColor(r_val,g_val,b_val):      # change duty cycle for three pins to r_val,g_val,b_val
    led.red=r_val/100                 # change pwmRed duty cycle to r_val
    led.green = g_val/100             # change pwmRed duty cycle to r_val
    led.blue = b_val/100              # change pwmRed duty cycle to r_val

def loop():
    while True :
        r=random.randint(0,100)  #get a random in (0,100)
        g=random.randint(0,100)
        b=random.randint(0,100)
        setColor(r,g,b)          #set random as a duty cycle value
        print ('r=%d, g=%d, b=%d ' %(r ,g, b))
        time.sleep(1)

def destroy():
    led.close()

if __name__ == '__main__':     # Program entrance
    print ('Program is starting ... ')
    try:
        loop()
    except KeyboardInterrupt:  # Press ctrl-c to end the program.
        destroy()
        print("Ending program")

Code RainbowLED.java (Controleer als de code niet werkt Geany Configuration.)

///usr/bin/env jbang "$0" "$@" ; exit $?

//DEPS org.slf4j:slf4j-api:2.0.12
//DEPS org.slf4j:slf4j-simple:2.0.12
//DEPS com.pi4j:pi4j-core:2.6.0
//DEPS com.pi4j:pi4j-plugin-raspberrypi:2.6.0
//DEPS com.pi4j:pi4j-plugin-gpiod:2.6.0

import com.pi4j.Pi4J;
import com.pi4j.context.Context;
import com.pi4j.io.gpio.digital.DigitalOutput;
import com.pi4j.util.Console;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;

class PWMController implements Runnable {
    private DigitalOutput pwm;
	private int pwmFrequency;
	private double pwmDutyCycle;
    private boolean running = true;
	private long period;
	private long highTime;
	private long lowTime;

    public PWMController(DigitalOutput pwm) {
        this.pwm = pwm;
		this.pwmFrequency = 1000;
		this.pwmDutyCycle = 0.5;
		this.period = (int) (1000000 / pwmFrequency);
		this.highTime = (int) (period * pwmDutyCycle);
		this.lowTime = (int) (period - highTime);
    }

    @Override
    public void run() {
        while (running) {
            if(highTime!=0){
				pwm.high();
				delayUs(highTime);
			}
			if(lowTime!=0){
				pwm.low();
				delayUs(lowTime);
			}
        }
    }

	public void setPwmFrequency(int frequency) {
        if(frequency!=0){
			this.pwmFrequency = frequency;
			this.period = (int) (1000000 / pwmFrequency);
			this.highTime = (int) (period * pwmDutyCycle);
			this.lowTime = (int) (period - highTime);
		}
		else{
			this.pwmFrequency = 0;
			this.period = (int) (1000);
			this.highTime = (int) (0);
			this.lowTime = (int) (period - highTime);
		}
    }

	public void setPwmDutyCycle(double dutyCycle) {
        this.pwmDutyCycle = dutyCycle;
		this.highTime = (int) (period * pwmDutyCycle);
		this.lowTime = (int) (period - highTime);
    }

    private void delayUs(long us) {
        long startTime = System.nanoTime();
        long endTime = startTime + (us * 1000);
        while (System.nanoTime() < endTime) {
        }
    }

    public void requestStop() {
        running = false;
    }
}

public class RainbowLED {
    private static final Context pi4j = Pi4J.newAutoContext();
    private static final Map<Integer, PWMController> pwmControllers = new HashMap<>();

	public static void setPwmConfig(int pin) throws Exception {
        DigitalOutput led = pi4j.dout().create(pin);
        PWMController pwmController = new PWMController(led);
        Thread pwmThread = new Thread(pwmController, "PWM LED Controller " + pin);
        pwmControllers.put(pin, pwmController);
        pwmThread.start();
        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            pwmController.requestStop();
            try {
                pwmThread.join();
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
        }));
    }

	public static void ledSetup(int[] pins) {
        for (int pin : pins) {
            try {
                setPwmConfig(pin);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

	public static void setLedColor(int[] pins, int r, int g, int b) {
        if (pins.length >= 3) {
            PWMController red = pwmControllers.get(pins[0]);
            PWMController green = pwmControllers.get(pins[1]);
            PWMController blue = pwmControllers.get(pins[2]);
            if (red != null) red.setPwmDutyCycle((double) r / 100.0);
            if (green != null) green.setPwmDutyCycle((double) g / 100.0);
            if (blue != null) blue.setPwmDutyCycle((double) b / 100.0);
        }
    }

    public static void main(String[] args) throws Exception {
		final var console = new Console();
		int[] LED_PINS = {17, 18, 27};
		Random random = new Random();

        try {
			ledSetup(LED_PINS);
			while (true) {
				int red = random.nextInt(101);
				int green = random.nextInt(101);
				int blue = random.nextInt(101);
				console.println("R:%d  G:%d, B:%d", red, green, blue);
				setLedColor(LED_PINS, red, green, blue);
				Thread.sleep(500);
			}
        }
		finally {
            for (PWMController controller : pwmControllers.values()) {
                controller.requestStop();
            }
            pi4j.shutdown();
        }
    }
}
